Description

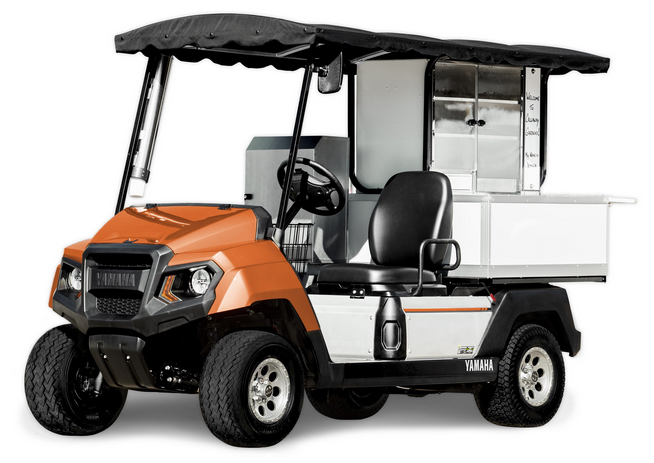

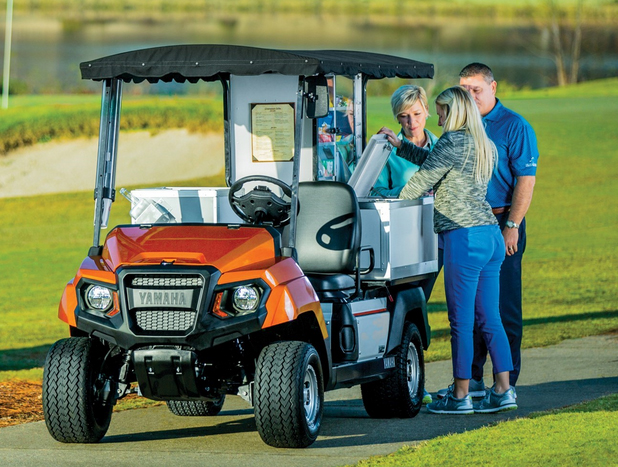

Servicing your customers is now easier than ever with our fully redesigned UMAX Fairway Lounge. Featuring a four-lid ice chest, a sliding snack tray, and an optional coffee cambro, your guests will have easy access to the refreshments they need, any time. We’ve also enhanced the entire shopping experience with slanted shelves perfectly equipped for displaying merchandise of your choice.
- FUEL SYSTEM: Electronic fuel injection
- ENGINE TYPE: Yamaha Built 402cc, Low Emission Single Cylinder 60deg Incline OHV
- LUBRICATION SYSTEM: Splash-style positive oil lubrication
- OIL CAPACITY: 1.16 U.S. quart (1.1 liter, 1100cc), Yamalube 10W-30 liter
- COOLING SYSTEM: Forced air
- STARTING SYSTEM: Starter generator with pedal start system
-
PERFORMANCE: Maximum Forward Speed—19.5 mph (31.4 km/h)Maximum Reverse Speed—17.5 mph (28 km/h)Minimum Turning Radius—3.48 mDIMENSIONS:Overall Length—119.37 in (303.2 cm)Overall Width—49.33 in (125.3 cm)Overall Height (with suntop)—71.81 in (182.4 cm)Overall Height (without suntop)—48.54 in (123.3 cm)Wheelbase—77.2 in (196.1 cm)Front Wheel Tread—40.27 in (102.3 cm)Rear Wheel Tread—40.19 in (102.1 cm)Minimum Ground Clearance—4.52 in (11.5 cm)FRAME: HybriCore™ chassis features a robotic welded automotive ladder-style steel frame protected with a multi-step full-immersion phosphate treatment, electro-deposition epoxy-based coating, and an electrostatic applied polyester/urethane powder topcoatBODY: Custom-formulated thermoplastic olefin painted with a two-part top coat of high-luster automotive-grade polyurethaneSTEERING: Self-compensating double reduction helical rack-and-pinionFRONT WHEEL SUSPENSION: Tru-Trak II™ fully independent automotive-style strut suspensionREAR WHEEL SUSPENSION: Unit swing arm with DUAL RATE coil springs over hydraulic shock absorbersBRAKES:Self-adjusting mechanical, front and rear wheel drum brakes
